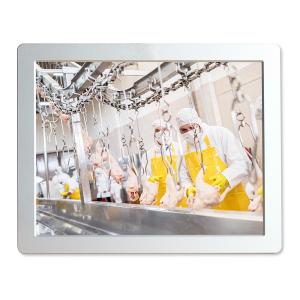

Sealed ip66 waterproof touch screen pc, custom fanless panel computers outdoor
Feature
The Aluminum Alloy IP68 waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
1.15" TFT LED, resolution 1024*768
2. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
2. Intel Core i3-6100U Dual Core 2.4GHz
3. I/O interface optional: VGA/HD-MI/LAN/USB/RS232
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input, (+9V～36V) optional
6. VESA Mounting: 100 x 100 mm
7. Wide range: -20°C to 70°C working temperature range.
8. 1000nits high brightness optional
| WPC-O015SBR |
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB |
| Chipsets | Intel 6th Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 520 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Display Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M , 72% NTSC |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% |
| Response Time | <5ms |
| Surface Hardness | ≥3H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 1000W |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP67 / IP68 / IP69K |
| Product Dimension | 360 x 283 x 50 mm |
| Cut-out Size | / |
| Packing Size | 460 x 180 x 400 mm |
| Gross Weight | 7.0 KG |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beatiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
Product Tags:
|
|
Sealed Ip66 Waterproof Panel Mount Computer , Fanless Marine Panel Pc Images
|
