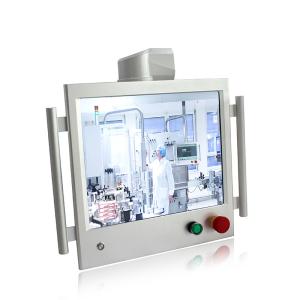

LCD Industrial Touch Screen Pc , IP65 17" Industrial Touch Monitor

Brand Name : QYT

Model Number : DCP-M017SBR

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram

Supply Ability : 5000 Set/Sets per Month

Delivery Time : 3-10 Business Days

Packaging Details : Foam + Carton

IP Rating : IP65

Led Panel : 17" Led

Resolution : 1280 x 1024

CPU : Intel Celeron Dual Core 3855U 1.6GHz

RAM : DDR4L 2133MHz 4GB, Up to 16GB

Harddisk : 64G SSD / (128G / 250G / 500G SSD) optional

I/O Interface : VGA/HD-MI/LAN/USB/COM

Touchscreen : Resistive Touch / Capacitive(optional)

Contact Now

IP65 Weatherproof Wide Temperature 17" LCD Industrial Resistive Touch Panel Control System

Feature
HMI Touch Panel for use in harsh industrial environments
The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.

1. 17" TFT LED, resolution 1280 x 1024

2. 5 wire resistive touch screen, high precision, durable, anti-interference.

3. Intel Celeron Dual Core 3855U 1.6GHz

4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

5. Operating System: Win7/8/10/Linux/Ubuntu

6. DC12V~24V Input,(+9V～36V)wide voltage input optional

DCP-M017SBR
System	CPU	Intel Celeron Dual Core 3855U 1.6GHz
	L3 Cache	2MB
	Chipsets	Intel Skylake-U SOC
	Memory	DDR4L 2133MHz 4GB, Up to 16GB
	Harddisk	1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
	Graphics	Intel HD Graphics 510
	Network	Intel® i211 1000 Mbps port
	Audio	Realtek ACL662 Audio controller
	Operation System	Windows7 / 8 / 10, Linux, Unix, QNX
I / O	VGA	1 x VGA / 1 x HD-MI
	LAN	1 x LAN
	USB	2 x USB2.0 / 2 x USB3.0
	IDEC Switch	Start / Select / Reset / Key/ Stop switch ( Optional )
	Wireless Network	WiFi + Bluetooth ( Optional )
	Other I/O Interface	1 x Power Switch
LCD Panel	Panel Size	17" Led
	Resolution	1280 x 1024
	Aspect Ratio	5:4
	Display Brightness	400 cd/m2
	Contrast Ratio	1000:1
	Colors	16.7M , 90% NTSC
	Backlight Lifetime	50000 Hr (min.)
	Viewing Angle	88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen	Touch Screen Type	5 wire resistive touch
	Transmittance	>85%
	Response Time	<5ms
	Surface Hardness	≥3H
	Supply Voltage	5.0V DC
	Touch Life	≧ 1000W
Institutional	Material	Aluminum Alloy Shell
	Color	Silver / Black ( optional )
	VESA Mounting	Cantilever bracket
	Waterproof Rate	IP65
	Product Dimension	400 x 390 x 155 mm
	Cut-out Size	/
	Packing Size	500 x 340 x 450 mm
	Gross Weight	16.0 KG
Power and Environment	Operating Temperature	-10~60°C
	Storage Temperature	-20~80°C(-22~176°F)
	Relative Humidity	5%~95%@40°C, non-condensing
	Vibration Range	5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
	External Power Supply	AC 100 - 240V~50/60Hz,1.5A
	Working Voltage	DC 12V~24V / optional(+9V~36V)
	Power Consumption	≦30W

LCD Industrial Touch Screen Pc , IP65 17" Industrial Touch Monitor

Advantages:

1. Full IP65 dustproof/waterproof

2. Capacitive touch screen

3. High quality operation key and indication switch

4. Connectors supporting a variety of cantilever profiles

5. Simple and efficient site installation and maintenance, the core part can be seen

6. Front panel operation key/indication switch are easy to connect with the controller

7. Front panel keys can customize LOGO, text, color

8. Flexible expansion of USB, host switch, WIFI and custom functions

Automation Touch Panel for optimum machine operation

The Automation Panel allows extremely flexible operation of your machines thanks to the integrated push-button strip.

Thanks to the numerous interfaces, the panel can be optimally adapted to your requirements.

Configuration of the button assignment

The use of a push-button strip increases the possibilities for machine operation functionality even further. With the exception of the emergency stop, the push-buttons can be individually assigned according to your requirements. You define which colour the buttons should have and which labelling is to be applied. An RFID reader and a protected USB socket are available on the left side. On request, we can integrate your company logo into the button strip.
