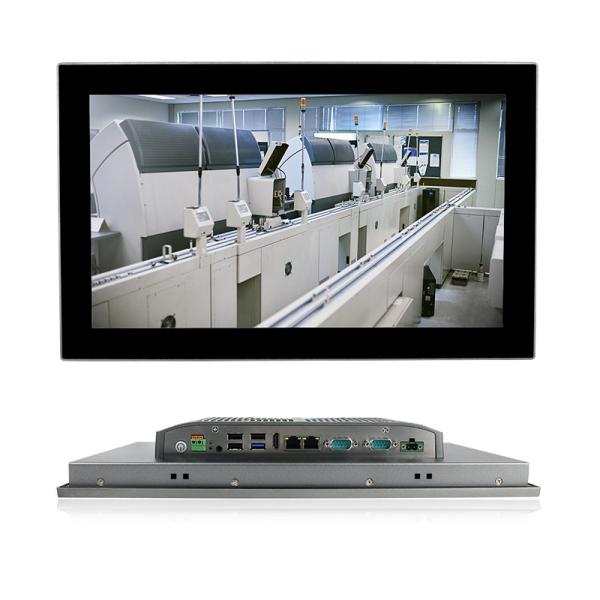

17.3" Wide Viewing Angle Panel Pc Touch Screen 1920 X 1080 4G WiFi Bluetooth
Feature
1. 17.3" TFT LED, resolution 1920 x 1080, Multi-Touch PCAP
2. Intel Celeron Quad Core J1900 2.0GHz
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC IN 9V~36V
6. TPM2.0
Application
Ticket machine
Out fare turnstile gates
SMArt Lockers parcel locker
On vessel
Stereo garage
Security monitoring
Self serve kiosk
Automatic pay station machine
Specification
| PPC-J173WAC |
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional |
| Graphics | Intel HD Graphics |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows7 / 8 / 10 / Linux |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB2.0 / 1 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 17.3" LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 600:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 |
| Product Dimension | 441 x 274 x 60 mm |
| Cut-out Size | 428 x 258 mm |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8 KG |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦30W |
Product Advantage
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
7. High performance motherboard, 7x24 continuous operation.
