800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port

Brand Name : QYT

Model Number : PPC-J010SAR

Certification : CE, FCC, RoHS, IP68, IP69K

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram

Supply Ability : 5000 Set/Sets per Month

Delivery Time : 3-10 Business Days

Packaging Details : Foam + Carton

IP Rating : Front IP65

Led Panel : 10.4" LED

Resolution : 800x600

CPU : Intel Celeron Quad Core J1900 2.0GHz

Memory : DDR3L 1333MHz 4GB, Up to 8GB

Harddisk : 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional

I/O Port : 1 x H-DMI, 2 x LAN, 3 x USB2.0 / 1 x USB3.0 ,2 x RS-232 / 422 / 485

Touchscreen : Resistive touch

Product Dimension : 275 x 222 x 58 mm

Cut-out Size : 263 x 210 mm

Contact Now

Industrial Embedded 10 Inch Pc Touch Screen Windows J1900 800 X 600

Features:

1. Aluminum alloy panels, front panel IP65 waterproof standard.
2. 10.4" TFT LED, resolution 800 x 600, Resistive touch.
3. CPU: Intel j1900 2.0 GHz tablet silent no fan industry.
4. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static and 600 w TVS surge protection.

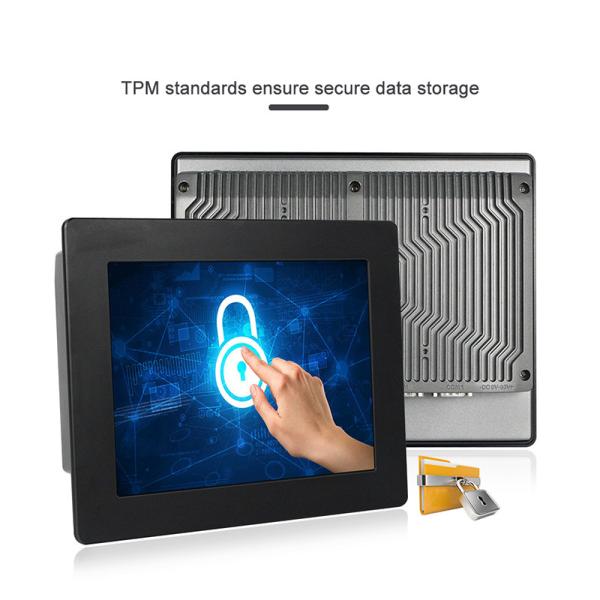

5. The onboard TPM2.0 modules provide maximum security hardware.
6. Wide voltage DC 9v ~ 36v, over-current, over-voltage and reverse connect protection.

Onboard Intel Celeron J1900/7th/8th Gen.Core i3/i5/i7 CPU

Onboard DDR3 4GB Memory / Optional SODIMM SKU

LCD+HDMI Output, Support Dual view/Simultaneous display

Fanless Operation

IP65 Front Bezel

Wide DC Support 9 ~ 36V

GPIO Port

All Aluminum Housing with Heatsink

Specification

PPC-J010SAR
System	CPU	Intel Celeron Quad Core J1900 2.0GHz
	L2 Cache	2MB
	Chipsets	Intel Bay Trail SOC
	Memory	DDR3L 1333MHz 4GB, Up to 8GB
	Harddisk	1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
	Graphics	Intel HD Graphics
	Network	Intel® I211-AT GbE LAN
	Audio	Realtek ACL662 Audio controller
	TPM	TPM 2.0
	Operation System	Windows7 / 8 / 10, Linux, Ubuntu, Debian
I / O	HDMI	1 x H-DMI
	LAN	2 x LAN
	USB	3 x USB2.0 / 1 x USB3.0
	COM	2 x RS-232 / 422 / 485
	Wireless Network	4G / WiFi / Bluetooth ( Optional )
	Other I/O Interface	1 x Power Switch
LCD Panel	Panel Size	10.4" Led
	Resolution	800 x 600
	Aspect Ratio	4:3
	Display Brightness	350 cd/m2
	Contrast Ratio	800:1
	Backlight Lifetime	30000 Hr (min.)
	Viewing Angle	80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )
Touch screen	Touch Screen Type	Resistive touch
	Transmittance	>90%
	Response Time	<5ms
	Surface Hardness	≥7H
	Supply Voltage	5.0V DC
	Touch Life	≧ 3000W
Institutional	Material	High-strength Al-alloy, support IP65
	Color	Gray
	VESA Mounting	VESA: 100 x 100 mm
	Waterproof Rate	IP65
	Product Dimension	275 x 222 x 58 mm
	Cut-out Size	263 x 210 mm
	Packing Size	360 x 180 x 320 mm
	Gross Weight	4.0 KG
Power and Environment	Operating Temperature	-20~70°C
	Storage Temperature	-30~80°C(-22~176°F)
	Relative Humidity	5%~95%@40°C, non-condensing
	Vibration Range	5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
	External Power Supply	AC 100 - 240V~50/60Hz,1.5A
	Working Voltage	DC IN 9V~36V
	Power Consumption	≦30W
